Duplex OS2 Single Mode LC APC to LC APC

About

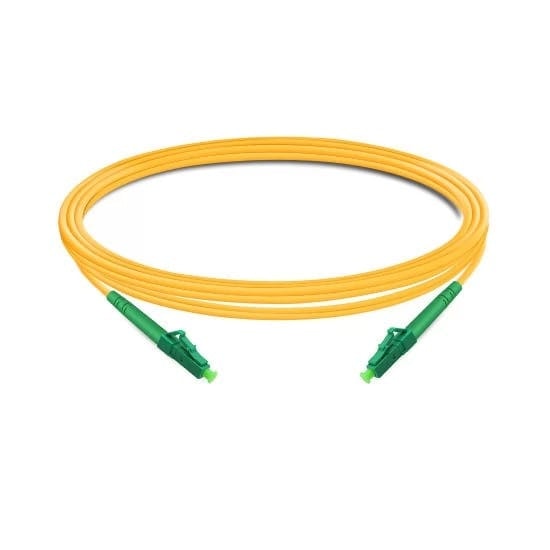

This product features LC APC connectors on both ends. It utilizes a single mode OS2 9/125μm optical fiber manufactured by Corning ClearCurve. The cable is designed for duplex operation over a 1 meter distance, which is approximately 3 feet. It supports wavelengths of 1310nm and 1550nm for CWDM and DWDM applications. The cable jacket is constructed from PVC rated OFNR. Key performance specifications include an insertion loss of 0.3dB or less and a return loss of 50dB or greater. Attenuation is a maximum of 0.36dB per kilometer at 1310nm and 0.25dB per kilometer at 1550nm for DWDM. The overall cable diameter measures 2.0mm.
